DHB V1089 10.1-Inch Taxi Headrest Display
Product Overview
DHB V1089 10.1 Inch Taxi Headrest Display
The DHB V1089 10.1 Inch Taxi Headrest Display is Donghebao’s second-generation taxi advertising display, developed specifically for taxi advertising networks, ride-hailing fleets, passenger information systems, and commercial in-vehicle media projects.
Powered by the RK3566 quad-core Cortex-A55 processor and Android 11 operating system, the 10.1 Inch Taxi Headrest Display provides stable performance for multimedia playback, advertising management, and third-party applications. The 10.1-inch G+G IPS display features a resolution of 1280 × 800 with a 16:10 aspect ratio, delivering sharp images and wide viewing angles for passengers.
To support different project requirements, the 10.1 Inch Taxi Headrest Display is available with 2GB + 32GB or 4GB + 64GB memory configurations. Standard wireless connectivity includes Bluetooth and Wi-Fi, while optional dual-band Wi-Fi and European 4G LTE modules enable reliable online operation for fleet advertising systems.
The display also supports a wide range of optional hardware, including an external GPS module, 5MP camera, microphone, capacitive touch screen, PIR human detection sensor, light sensor, anti-glare glass, ambient light adjustment, and 24W fast charging. These features allow system integrators and fleet operators to configure the device according to different advertising and transportation projects.
Designed for commercial vehicle installation, the 10.1 Inch Taxi Headrest Display supports a DC input voltage of 9V–16V with a maximum operating current of 2A. The compact housing measures 242 × 168 × 22 mm and supports an adjustable viewing angle for installation in different vehicle models.
For large-scale fleet deployment, the 10.1 Inch Taxi Headrest Display can be integrated with an optional Cloud CMS platform, allowing remote content publishing, centralized device management, and real-time monitoring. Donghebao also provides comprehensive OEM and ODM services, including custom branding, firmware development, CMS API integration, vehicle-specific mounting brackets, and packaging customization, making the V1089 an ideal solution for taxi advertising companies and fleet management providers worldwide.
Technical Specifications
Display
| Specification | Details |
|---|---|
| Display Size | 10.1 Inch |
| Resolution | 1280 × 800 |
| LCD Panel | G+G IPS |
| Aspect Ratio | 16:10 |
| Touch Screen | Optional |
| Anti-Glare Glass | Optional |
Hardware
| Specification | Details |
|---|---|
| CPU | RK3566 Quad-Core Cortex-A55 |
| Operating System | Android 11 |
| Memory | 2GB+32GB / 4GB+64GB |
| Bluetooth | Supported |
| Wi-Fi | 2.4GHz / Optional 5GHz |
Connectivity
| Specification | Details |
|---|---|
| 4G | Optional EU LTE Module |
| GPS | Optional |
| Camera | Optional 5MP |
| Microphone | Optional |
| Cloud CMS | Optional |
Smart Features
| Specification | Details |
|---|---|
| PIR Sensor | Optional |
| Light Sensor | Optional |
| Ambient Light | Supported |
| Screen Rotation | Optional |
| Viewing Angle | Adjustable |
Power & Dimensions
| Specification | Details |
|---|---|
| Input Voltage | DC 9V–16V |
| Max Working Current | 2A |
| Fast Charging | Optional 24W |
| DC Input | Supported |
| Overall Dimensions | 242 × 168 × 22 mm |
Product Gallery

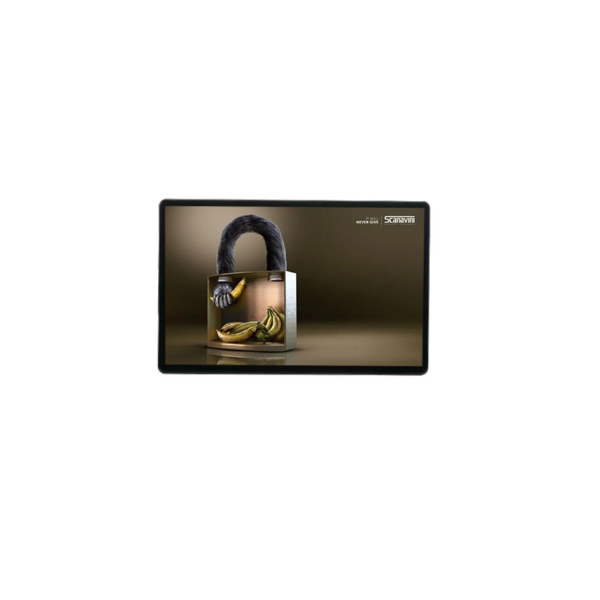

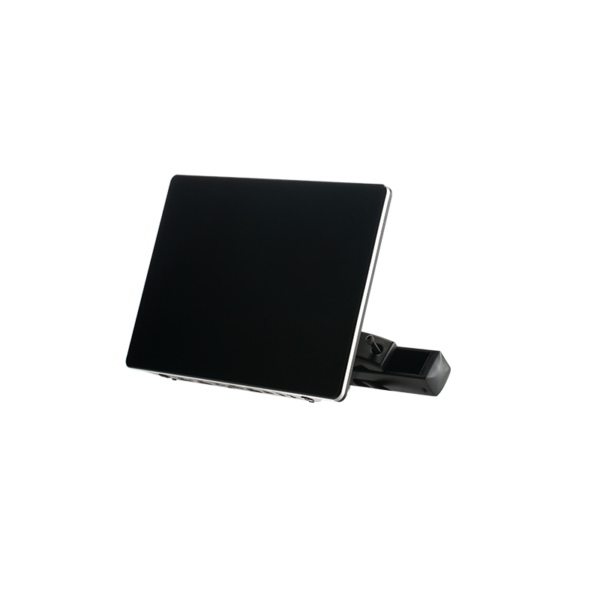

Front View
Showcase the high-definition 10.1-inch IPS display with a modern bezel design for premium passenger experience.

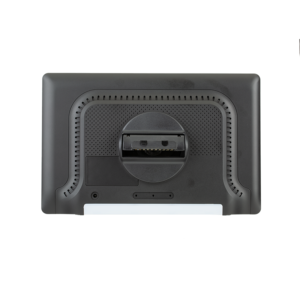

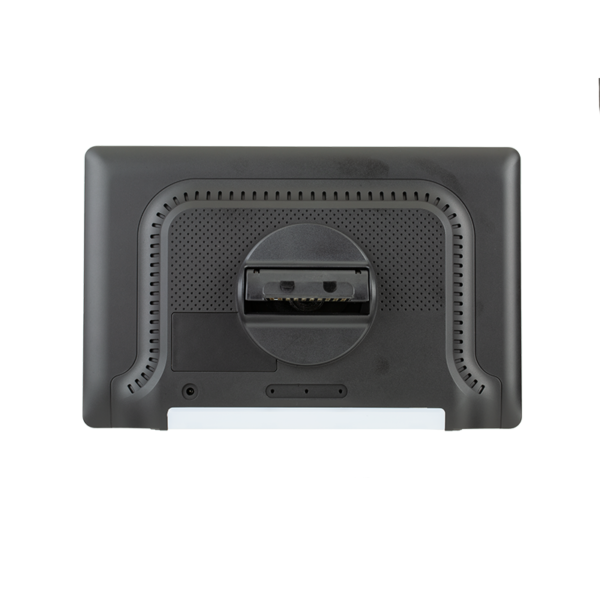

Rear View

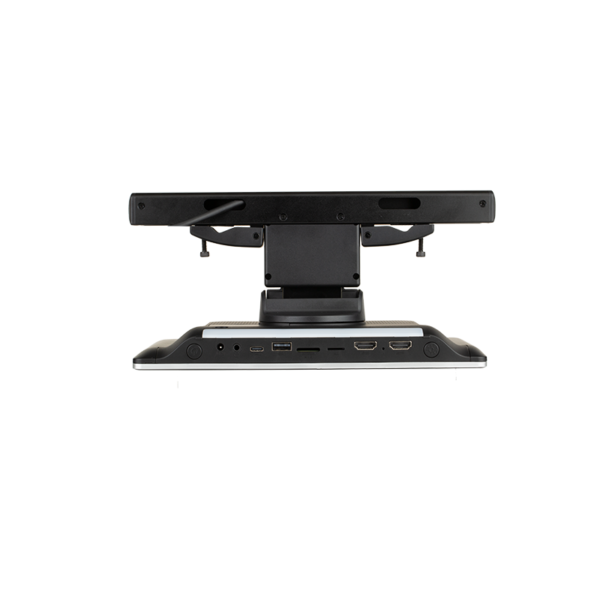

Integrated rear housing with multiple expansion interfaces for convenient installation and maintenance.

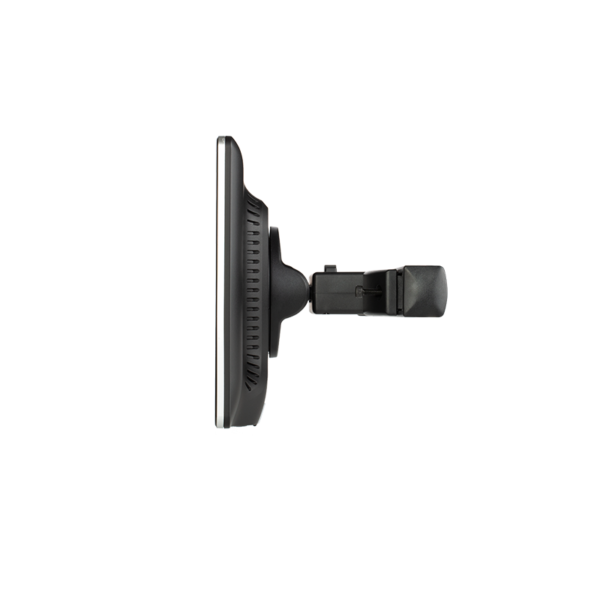

Side View
Slim profile with adjustable viewing angle, suitable for various taxi headrest mounting solutions.
Optional Features
The DHB V1089 can be customized with various optional hardware modules to meet different fleet and advertising project requirements.
- Capacitive Touch Screen
- 5MP Camera
- Built-in Microphone
- External GPS Module
- European 4G LTE Module
- PIR Human Detection Sensor
- Light Sensor
- Anti-Glare Glass
- 24W USB Fast Charging
- Dual-Band Wi-Fi
- Screen Rotation
- Cloud CMS Integration
OEM & ODM Services
Donghebao provides comprehensive OEM and ODM services for global customers.
Our customization services include:
- Logo Printing
- Boot Animation
- Custom Firmware
- CMS API Integration
- Android System Customization
- Vehicle-Specific Mounting Brackets
- Packaging Design
- Hardware Function Customization
Applications
The DHB V1089 is widely used in:
- Taxi Advertising
- Ride-Hailing Vehicles
- Fleet Digital Signage
- Passenger Information Systems
- Smart Transportation
- In-Vehicle Media Networks
Why Choose Donghebao
- Professional Taxi Headrest Display Manufacturer
- More than 10 Years of Industry Experience
- OEM & ODM Support
- Global Project Experience
- Stable Product Quality
- Technical Support
- Fast Delivery
- Long-Term Product Supply
Frequently Asked Questions
Does the V1089 support Cloud CMS?
Yes. Cloud CMS integration is available for remote content management and fleet control.
Can I customize the hardware configuration?
Yes. Memory, storage, 4G module, GPS, camera, sensors, and other functions can be customized according to your project.
Is OEM branding available?
Yes. We provide logo printing, custom firmware, boot animation, and packaging customization.
Which vehicles are compatible?
The V1089 supports vehicle-specific brackets and universal mounting solutions for most taxi and ride-hailing vehicle models.
Ready to Start Your Taxi Advertising Project?
Looking for a reliable taxi headrest display manufacturer?
Donghebao provides professional OEM & ODM solutions, Cloud CMS integration, and technical support for taxi advertising projects worldwide.
Contact us today to discuss your project requirements and receive a customized solution.
Contact Us
Get in Touch for Your Taxi Display Project
Whether you are looking for a standard taxi headrest display or a fully customized in-vehicle advertising solution, Donghebao is here to help. Our experienced team provides professional OEM & ODM manufacturing, hardware customization, Cloud CMS integration, and technical support for taxi advertising and fleet media projects worldwide.
Contact us today to discuss your project requirements, request a quotation, or learn more about our products and customization services.
Contact Information
Shenzhen Donghebao Technology Co., Ltd.
🌐 Website: https://dhbtaxiad.com
📱 WhatsApp: +86 13422871594
📧 Email: kiki@donghebao.com
We look forward to becoming your trusted partner for taxi headrest display solutions.
